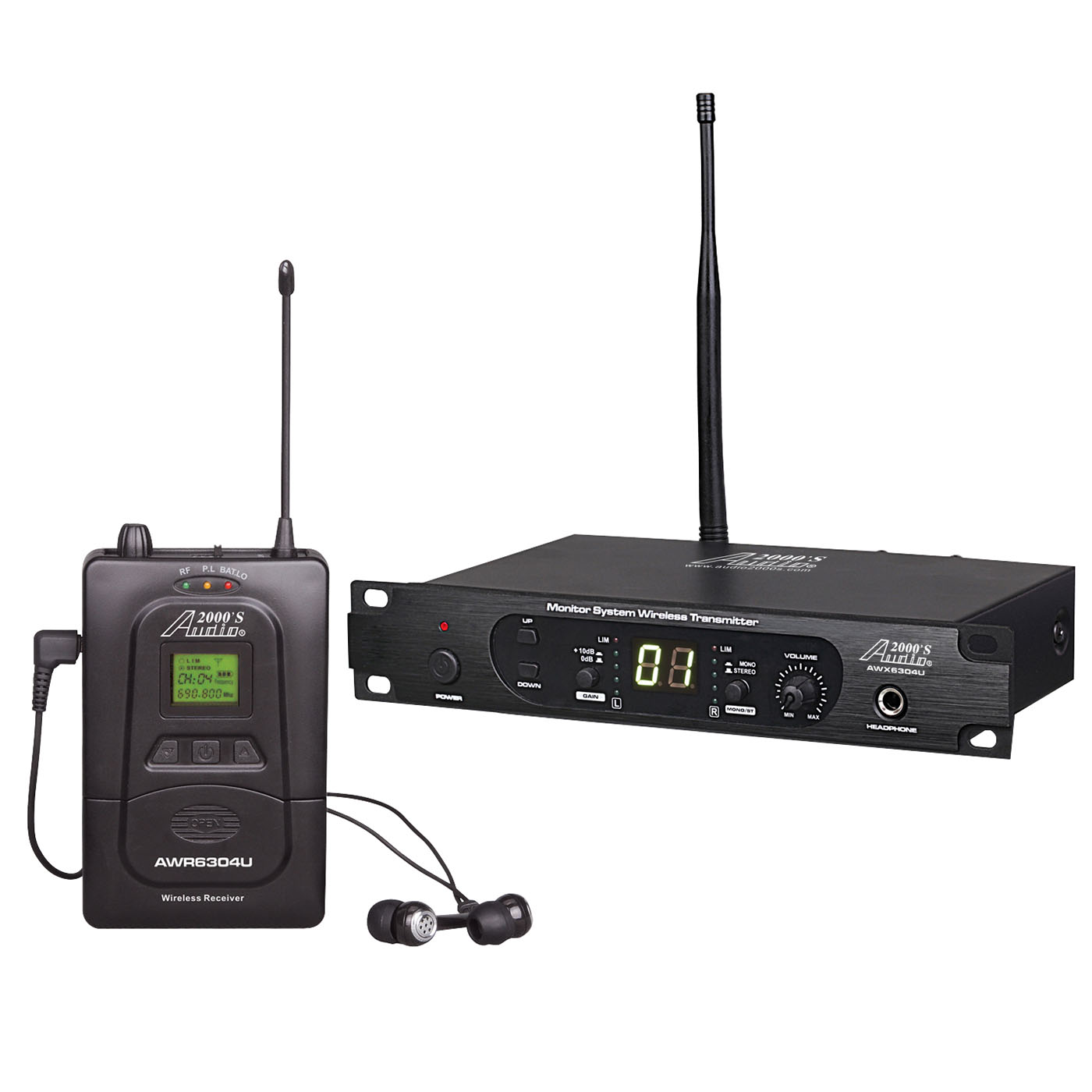

Audio 2000's AWM6304U Pro UHF In-Ear Monitoring SystemAudio 2000's AWM6304U Pro UHF In-Ear Monitoring System with 100 Adjustable Frequencies

Audio 2000's AWM6304U Pro UHF In-Ear Monitoring System
  • Audio 2000's AWM6304U Pro UHF In-Ear Monitoring System
  • Audio 2000's AWM6304U Pro UHF In-Ear Monitoring System
  • Audio 2000's AWM6304U Pro UHF In-Ear Monitoring System
  • Audio 2000's AWM6304U Pro UHF In-Ear Monitoring System
Write a Review
Item Code
:
HA2KMP6304U
Price
:
$219.99
Quantity
:
  • Overview
  • Feedback

Features:

  • UHF-Band Frequencies
  • Frequency Agile over a 25 MHz Bandwidth, with 100 preprogrammed Frequencies Available.
  • Built-in Limiter Circuitry Eliminating Distortion under Excessive Input Levels.
  • Front Panel 1/4-inch Stereo Monitoring Headphone Jack.
  • Mono Mode or Stereo Mode
  • LCD Display
  • Low-Battery Indicator on the Receiver
  • Two Balanced Combo Audio Inputs and Two Balanced Audio Outputs on the Transmitter
  • One Audio Level Adjustment Knob
  • Microcontroller (CPU) Controlled
  • 13 – 15VDC Power Supply

Specifications:

Transmitter:

Frequency Band UHF
Band Width 25 MHz
Oscillation Mode PLL Synthesized
Frequency Stability ±0.005% (32 - 122 Deg. F)
Modulation Mode FM Stereo Modulation
Output Power <10mW
Spurious Rejection -60 dBc
Max. Deviation Range 75 KHz
Frequency Response 50 - 15,000 Hz
T.H.D. <0.5% (@Max. Deviation Range @ 1 KHz)
Audio Output Line Level X2, XLR
Audio Input 1/4" Phone Jacks X 2
Headphone Output 1/4" Stereo Phone Jack w/Adjustable Volume
Headphone Output Impedance > 16 Ohms
Antenna Connector TNT (50 Ohms)
Dimensions 9.4" X 5.4" X 2.0"

Receiver:

Frequency Band UHF
Band Width 25 MHz
Oscillation Mode PLL Synthesized
Frequency Stability ±0.005% (32 - 122 Deg. F)
Modulation Mode FM Stereo Modulation
Max. Deviation Range ± 68 KHz
Receiving Mode Diversity Receiving
Receiving Sensitivity -107 dBm
Squelch Level -100 dBm -90 dBm -70 dBm
T.H.D. 1%
Max S/N Ratio 94 dB
Frequency Response 80 - 15,000 Hz (± 3 dB)
Stereo Separation 35 dB
Output Jack 3.5mm Stereo Headphone Jack
Output Power (32 Ohms) 2 X 50mW under 1KHz (T.H.D. 3%)
Headphone Impedance > 16 Ohms
Power Supply 2 X AA Batteries
Current Consumption 150 mA
Dimensions 4.2" X 2.6" X 1.1"
