JBL JRX215 15" Loudspeaker System -  Open BoxJBL JRX215 15" Loudspeaker System - Open Box Sound Reinforcement

JBL JRX215 15" Loudspeaker System -  <font color="ff0000"><b>Open Box</b></font>
Item Code
:
HJBLSPJ215RF
Price
:
$269.99
Quantity
:
  • Overview
  • Feedback

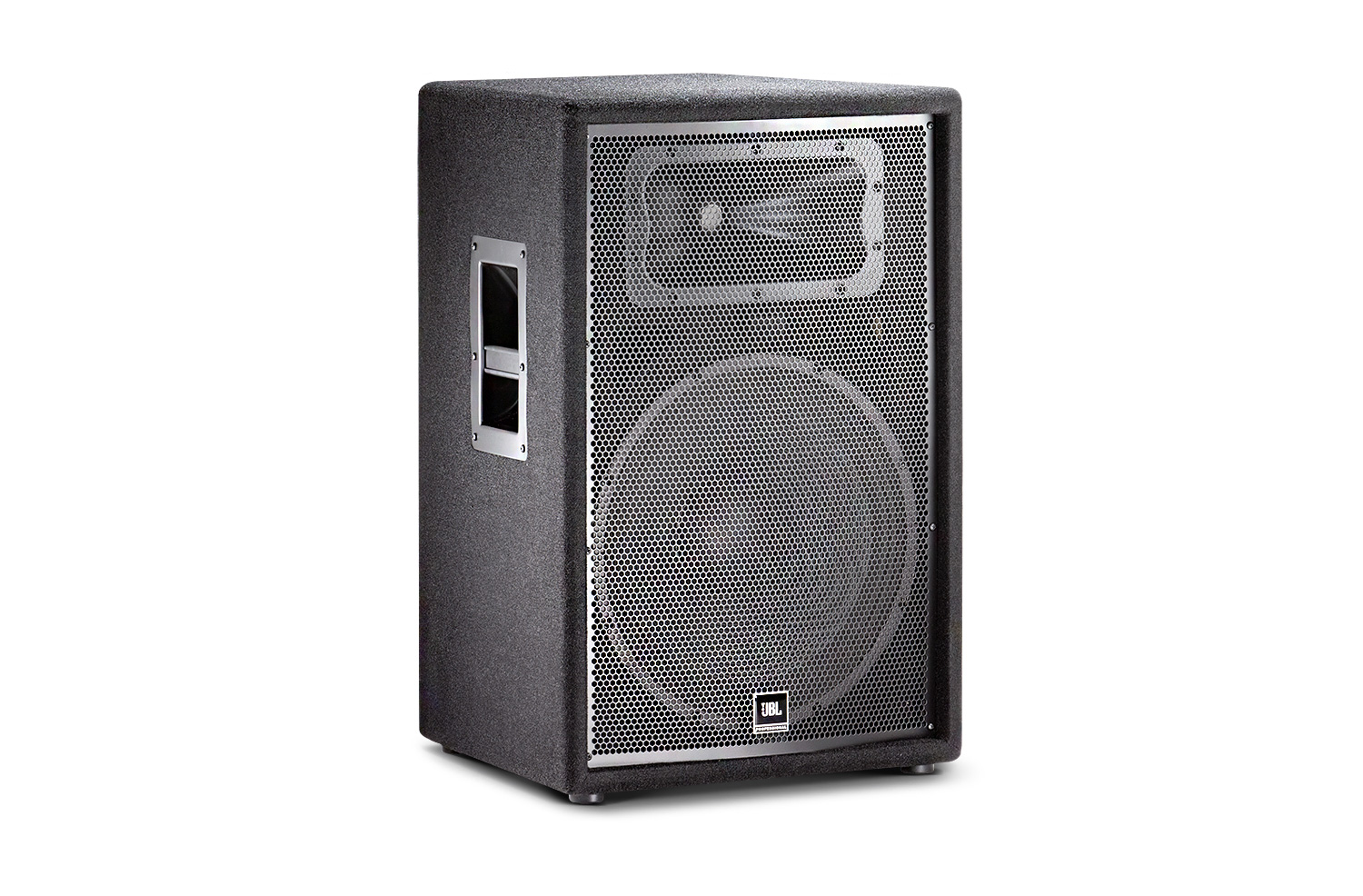

Two-Way Sound Reinforcement Loudspeaker System (Single)

This trapezoidal, 15" speaker system is at home in live sound, dance music and speech reinforcement.

Features:

  • JBL 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
  • JBL 2414H-C 25 mm (1 in ) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
  • The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region.
  • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
  • Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
  • The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in ) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
  • SonicGuard protects the high frequency driver from excess power without interrupting the performance.
  • Non-resonant, all-steel handles are used.
  • Attractive 18-gauge perforated, steel grille protects components from damage.
  • Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage.
Power Rating 250 W / 1000W
Frequency Range (-10 dB) 38 Hz - 19 kHz
Frequency Response (±3 dB) 50 Hz - 16 kHz
Sensitivity (@1m) 98 dB SPL (1w/1m)
Nominal Impedance 8 ohms
Recommended Amplifier Power 250 W to 500 W into 8 ohms
Maximum SPL 128 dB
Nominal Dispersion 90° x 50°
Crossover Frequency 1.6 kHz
Dimensions
(H x W x D)
699 mm x 460 mm x 432 mm
(27.5 in x 18.1 in x 17 in)
Weight 27.4 kg (60.5 lb)
High Frequency Driver JBL 2414H-C 25mm (1 in) polymer diaphragm compression driver mounted on Progressive Transition Waveguide
Low Frequency Driver JBL M115-8A
Input Connectors Neutrik Speakon NL-4 (x1); .25in TS phone jack (x1); parallel
