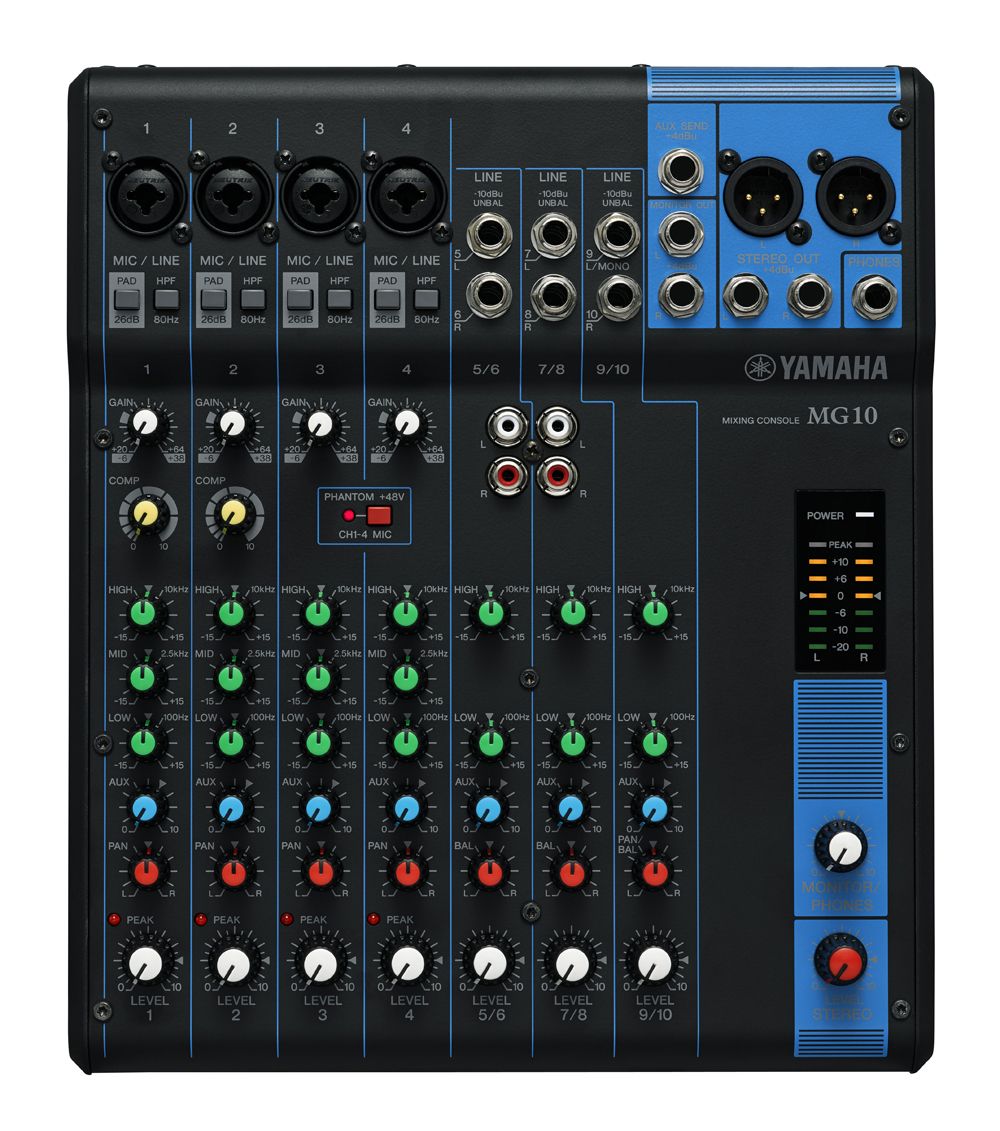

Yamaha MG10 10-Channel Mixing ConsoleYamaha MG10 10-Channel Mixing Console

Yamaha MG10 10-Channel Mixing Console
Item Code
:
HYAMMXMG10
Price
:
$204.99
Free Extended Warranty
:
Quantity
:
  • Overview
  • Feedback

Free 2-Year Extended Warranty from Ace Karaoke on all Yamaha Products

Features:

  • 10-Channel Mixing Console
  • Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
  • 1 Stereo Bus
  • 1 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Metal chassis
  • Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
  • Net Weight: 1.9 kg (4.19 lbs.)

Outline

I/O Phantom power +48 V
Input Channels Mono[MIC/LINE] 4
Stereo[LINE] 3
Output Channels STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 1
Bus Stereo: 1, AUX[FX]: 1
Input Channel Function PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono)
COMP 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]

General specifications

Total harmonic distortion 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150?, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk -83 dB
Power requirements PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption 22.9 W
Dimensions W 244 mm (9.6")
H 71 mm (2.8")
D 294 mm (11.6")
Net weight 1.9 kg (4.19 lbs.)
Accessories Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
Others Operating Temperature: 0 to +40?C
Would you like to help others by submitting a review? Create an account and earn points for your reviews!
5.0
1 Reviews
5
100% (1)
4
0% (0)
3
0% (0)
2
0% (0)
1
0% (0)
100% Recommend this product (1 of 1 responses)
By John J.
Sardis, MS
Yamaha MG 10
September 15, 2018
I purchased the MG10 to have extra channels to hook 4 wireless mics into my other systems. It is exactly what I needed and I have extra channels for future use.
